Table of contents
opensourcerl-toolkit

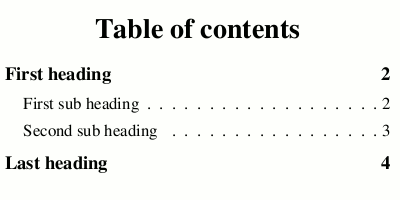

RLIMG: Table of contents
Author:
rptlab
Posted:
Dec. 11, 2009
Language:
Python
Tags:
opensource rl-toolkit

A table of contents can be easily generated by using the TableOfContents flowable. Details can be found in the User Guide in section 9.8. This method requires the multiBuild method. We will post a "single pass" example soon.

from  reportlab.lib.styles import ParagraphStyle as PS
from  reportlab.platypus import PageBreak
from  reportlab.platypus.paragraph import Paragraph
from  reportlab.platypus.doctemplate import PageTemplate, BaseDocTemplate
from  reportlab.platypus.tableofcontents import TableOfContents
from  reportlab.platypus.frames import Frame
from  reportlab.lib.units import cm
class MyDocTemplate(BaseDocTemplate):
     def __init__(self, filename, **kw):
         self.allowSplitting = 0
         apply(BaseDocTemplate.__init__, (self, filename), kw)
         template = PageTemplate('normal', [Frame(2.5*cm, 2.5*cm, 15*cm, 25*cm, id='F1')])
         self.addPageTemplates(template)

# Entries to the table of contents can be done either manually by
# calling the addEntry method on the TableOfContents object or automatically
# by sending a 'TOCEntry' notification in the afterFlowable method of
# the DocTemplate you are using. The data to be passed to notify is a list
# of three or four items countaining a level number, the entry text, the page
# number and an optional destination key which the entry should point to.
# This list will usually be created in a document template's method like
# afterFlowable(), making notification calls using the notify() method
# with appropriate data.

     def afterFlowable(self, flowable):
         "Registers TOC entries."
         if flowable.__class__.__name__ == 'Paragraph':
             text = flowable.getPlainText()
             style = flowable.style.name
             if style == 'Heading1':
                 self.notify('TOCEntry', (0, text, self.page))
             if style == 'Heading2':
                 self.notify('TOCEntry', (1, text, self.page))


centered = PS(name = 'centered',
    fontSize = 30,
    leading = 16,
    alignment = 1,
    spaceAfter = 20)

h1 = PS(
    name = 'Heading1',
    fontSize = 14,
    leading = 16)


h2 = PS(name = 'Heading2',
    fontSize = 12,
    leading = 14)


# Build story.
story = []

# Create an instance of TableOfContents. Override the level styles (optional)
# and add the object to the story

toc = TableOfContents()
toc.levelStyles = [
    PS(fontName='Times-Bold', fontSize=20, name='TOCHeading1', leftIndent=20, firstLineIndent=-20, spaceBefore=10, leading=16),
    PS(fontSize=18, name='TOCHeading2', leftIndent=40, firstLineIndent=-20, spaceBefore=5, leading=12),
]
story.append(toc)

story.append(Paragraph('<b>Table of contents</b>', centered))
story.append(PageBreak())
story.append(Paragraph('First heading', h1))
story.append(Paragraph('Text in first heading', PS('body')))
story.append(Paragraph('First sub heading', h2))
story.append(Paragraph('Text in first sub heading', PS('body')))
story.append(PageBreak())
story.append(Paragraph('Second sub heading', h2))
story.append(Paragraph('Text in second sub heading', PS('body')))
story.append(PageBreak())
story.append(Paragraph('Last heading', h1))
doc = MyDocTemplate('mintoc.pdf')
doc.multiBuild(story)
